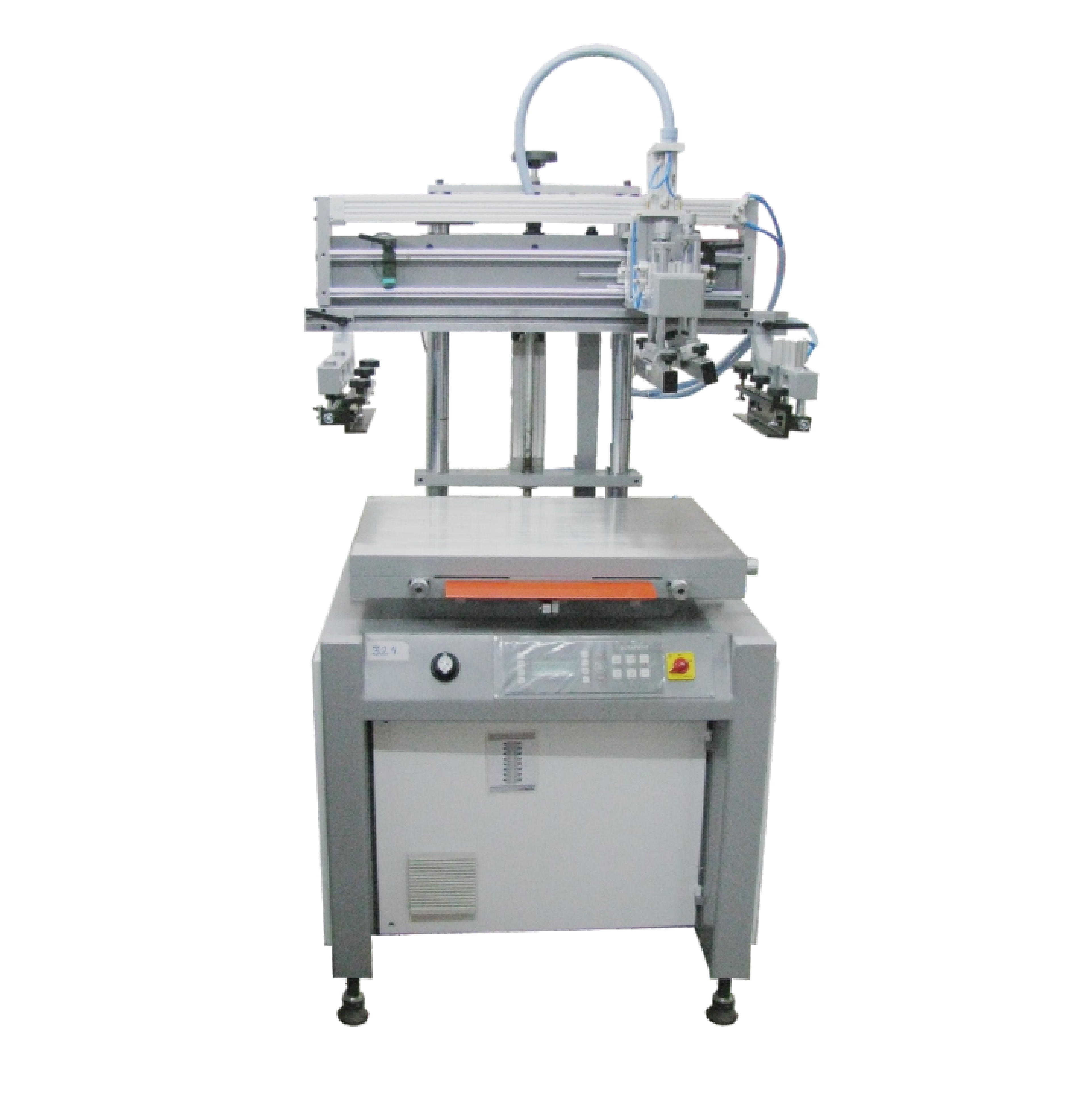

EASIPRINT P series screen printing machine

EASIPRINT P series is a vertical lift two post pillar pneumatic screen printing press. It is a semi auto flat pneumatic screen printing machine that offers superior print performance with zero registration issues. The machine delivers output of 720 impressions per hour.

Print Size 15” x 20”

EASIPRINT P series screen printing machine is suitable for shorter print runs due to its simple & fast loading unloading mechanism of screen Printing frames. The design of the machine ensures :

  • Safety of the operator
  • Easy to service
  • Effortless to operate
  • Occupies lesser production space

EASIPRINT flat pneumatic screen printing machine has self diagnostic closed loop system which continuously monitors its critical parts & any fault will be exactly identified on the LED panel to drastically reduce breakdown time.

Construction
  • Less space required
  • Screen runs vertically to keep ink on the screen so it does not flow
  • Easy for squeegee, coater & screen replacement as well as screen cleaning
  • Maximum printing speed : 800 / hour
Vacuum System
  • Heavy-gauge stainless steel top
  • Vacuum bed is drilled 1.1 mm
  • High-volume vacuum system
Control Panel
  • Easy to navigate with programming and prompts in plain language
  • Digital microprocessor with self-diagnostics
  • Flood /non-flood setting allows screens to be flooded or left un flooded after each print cycle
  • Hands-free single-cycle printing and for vacuum control of hard-to-feed substrates
  • Cycle interruption with foot start switch
  • Multiple print capability
Print Carriage
  • Adjustable, tool-free front and rear sensors for squeegee stroke length on adjustment
  • Shock absorber to eliminate the shock from printing movement
  • Pneumatic squeegee / flood pressure adjustment
  • Bed movement for registration
  • Adjustable peel off height & speed of peel-off
  • Safety plate and emergency stop push button for safety operation
Warranty and support
  • One-year warranty on manufacturing defects
  • Microprocessor self diagnostic system on each machine
Print Size 15” x 20” 385 x 510 mm
Sheet Size Max 18” x 23” 458 x 585 mm
Frame Size max 26” x 34” 660 x 864 mm
Frame Size min 15” x 20” 381 x 508 mm
Size of Vacuum Area 16” x 21” 407 x 534 mm
Max. Substrates thickness 2” 50 mm
Table fine adjustment Y-Y-X 0.3” ±10 mm
Squeegee speed 1.5 mm/sec
Outer dimensions (W/L/H) 34” x 34” x 63” 850 x850 x 1595mm
Weight 230 Kgs
Maximum Speed 840 cycles/Hr
Power supply Single phase / 3 phase 220V - 420V
Circuit connection 15 AMP. Plug socket
Consumption 6A
Air Consumption 14 l/Min
Working Space requirement 30Sq Ft ( 3 Sq meter)
Air Compressor 3 HP
Control Panel With self diagnostic system
Turbine Blower 0.5 HP
